Main Page1 » Charger2 » SkyRC T6755 55W/7A AC/DC

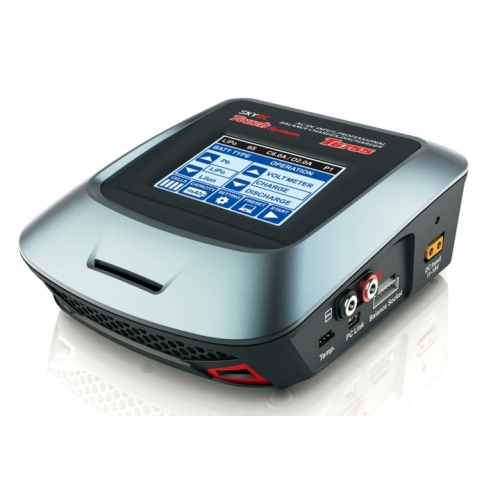

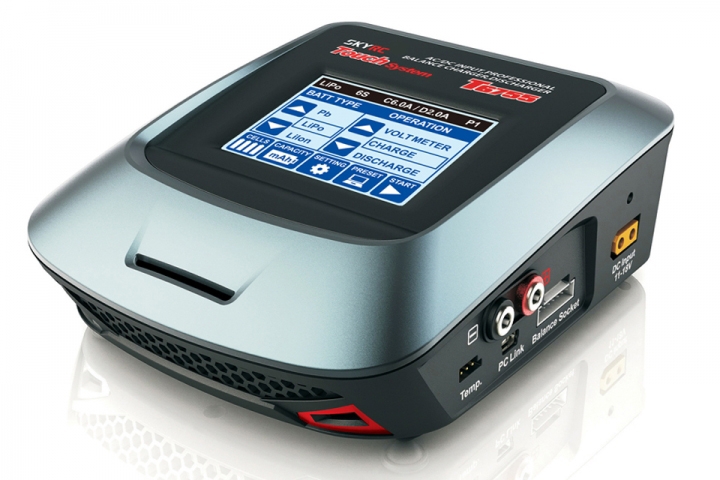

SkyRC T6755 55W/7A AC/DC

SkyRC T6755 55W/7A AC/DC

SkyRC

Availability: Not available

Shipping time: 24 hours

The cost of shipping: from 3.50 Euro Available delivery forms for viewing the product:Curier Service - 4.50 Euro
Air Mail - 4.00 Euro
Poczta Polska list polecony - 4.00 Euro
Surface mail - 3.50 Euro
InPost Paczkomaty24 - 3.50 Euro
Personal Acceptance - 0.00 Euro

Number: 150

Producer code: SK-100064

Stockage:

Price: 79.75 Euro

Currently not available

add to wish list

  • Product description
  • Specifications
  • Product reviews (0)

  AC/DC INPUT,PROFESSIONAL
BALANCE CHARGER,DISCHARGER
  More touch,
Easy control!
  It is equipped with a 3.2" (320*240 dot) touch sensitive color LCD screen and user can have best using experience
and interactivity.
  Tilt Stand Design
  The tilt stand can support the chargers at different tilt angles so that the users can get best operational experience.

  Efficient Ventilation Design
  The ventilation holes are designed in the front and back panel for efficient air-flow which is vitally important for charger.
alt

  Intuitive User Interface
    The user interface is intuitive as all the operating instruction and changing status is displayed in the screen and the touch screen can register the users' input precisely so that the users can have a wonderful and comfortable "touch" experience.
  Charging Status Monitor
  When the charger is working, the users could check the information of charging capacity, cell voltage, charging time, external and internal temperature easily. What's more, it can also display the voltage in a graphic.

  Terminal Voltage Control
    The charger allows user to set the
charge/discharge end voltage.

  Maximum Safety Protection
  Automatic Charging Current Limit
Capacity Limit
Temperature Threshold
Processing Time Limit
  PC Control Software "Charge Master"
  The free "Charge Master" software gives user unparalleled ability to operate the charger through the computer. The user can monitor pack voltage, cell voltage and other data during the charging, view charge date in realtime graphs, and can also control charging and update firmware from "Charge Master".

alt
alt
  SPECIAL FEATURES
  •Touch system •Maximum safety protection
  •Charging status monitor •Battery meter
  •Microprocessor controlled •PC control software"Charge Master"
  •Terminal voltage control •High-powered and high-performance
  •Multi-language and four
 color theme optional		  circuit


alt
＊ Users can control and monitor the charge through computer when Charge Master software is installed.
＊＊ You can download Charge Master software from our website  pics_skyrc_com.skyrc.eu
  This function is available by connecting optional temperature probe which is not included in the package.

alt
alt

SkyRC T6755 55W/7A AC/DC SK-100064 in the shop RcHubiQ

alt

  Input Voltage



AC Input: 100-240V/DC Input: 11-18V
  Controls

Color LCD Touch Screen
  Display Type

65.85*49.63mm graphic touch sensitive LCD 3.2"(320*240 dot) screen and four color theme
  Display Backlight

White
  PC Communications

USB Port for PC Control & Firmware Upgrade
  Case Material

Plastic
  Cooling System

Built-in, one 40*40*10mm fan
  Case Size

140*165*60mm


Weight



540g
  External Port

Balance Socket-XH, Temperature Probe Socket, DC Input, USB port for PC, AC Input Power Port
  Delta Peak Detection

NiCd: 3-15mV/cell
NiMH: 3-15mV/cell
  Charge Cutoff Temperature

20-80°C (adjustable)
  Charge Voltage

NiCd/NiMH: Delta peak detection
LiPo: 4.18-4.3V/cell
LiIon: 4.08-4.2V/cell
  Balance Current

200mA/cell
  Reading Voltage Range

0.3-5.0V/cell
  Battery Types/Cells

NiCd/NiMH: 1-15cells
LiPo/LiIon/LiFe: 1-6cells
Pb: 2-20V
  Battery Capacity Range

NiCd/NiMH: 100-20,000mAh
LiPo/LiIon/LiFe: 100-20,000mAh
Pb: 100-20,000mAh
  Charge Current

0.1-7.0A
  Safety Timer

1-720 minutes, Off
  Charge Wattage

55W
  Discharge Current

0.1-2.0A (±10%)
  Discharge Cut-off Voltage

NiCd/NiMH: 0.1-1.1V/cell
LiPo: 3.0-3.3V/cell
LiIon: 2.9-3.2V/cell
  Discharge Wattage

5W
  Balance Cells

6 cells
  Memory

5 different charge/discharge profiles
  Charge Method

CC/CV for lithium types and lead (pb) batteries, Delta-peak Sensitivity for NiMH/NiCd
