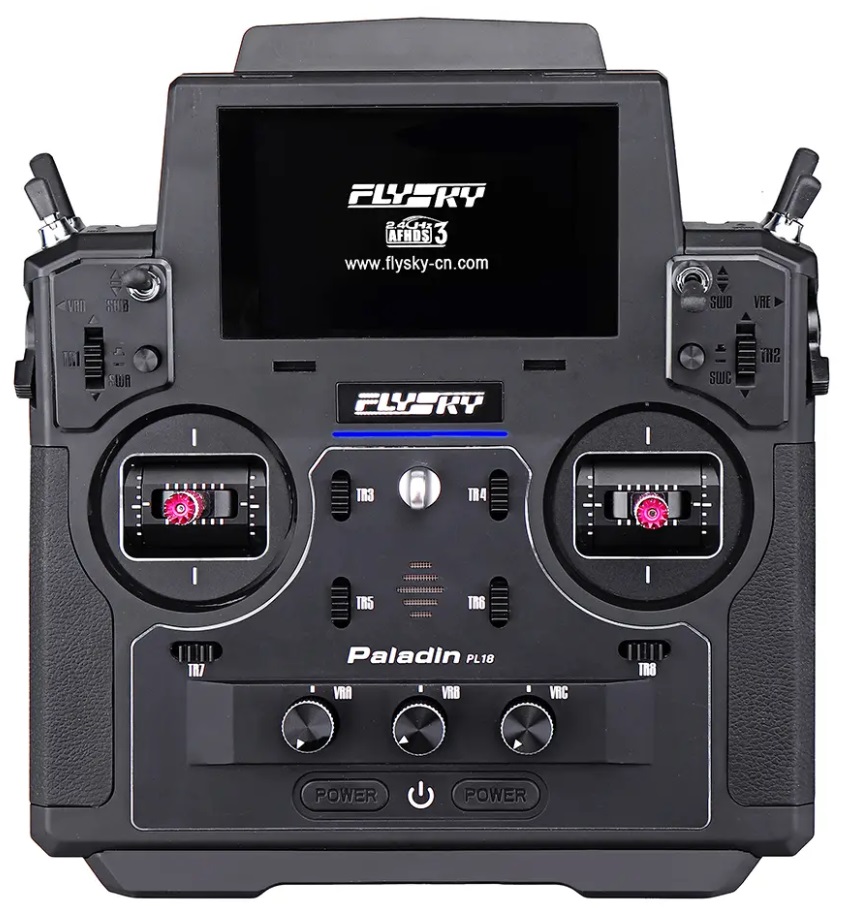

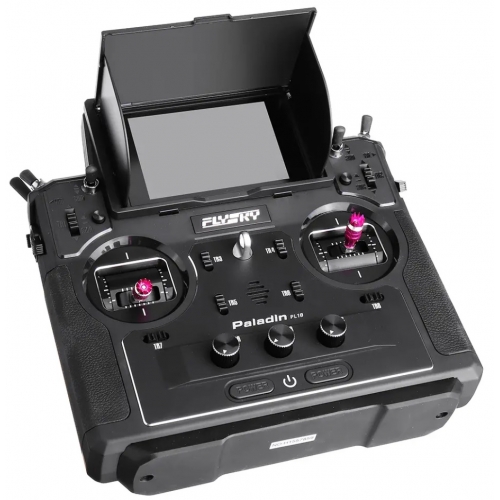

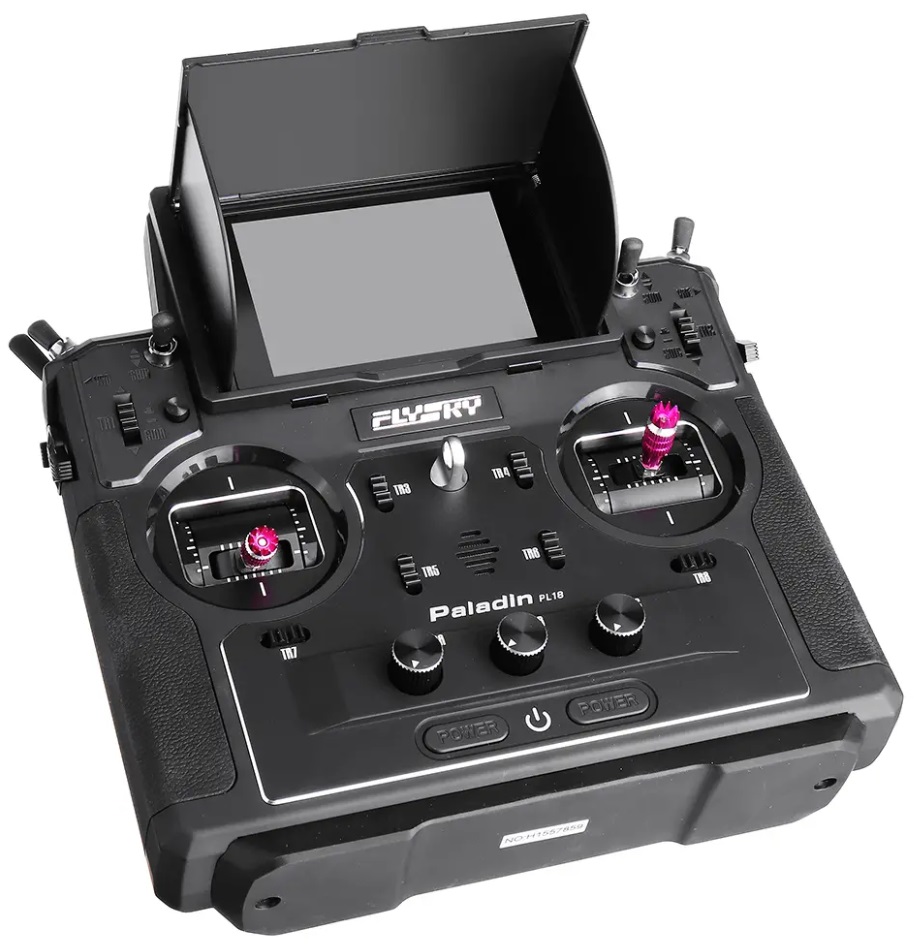

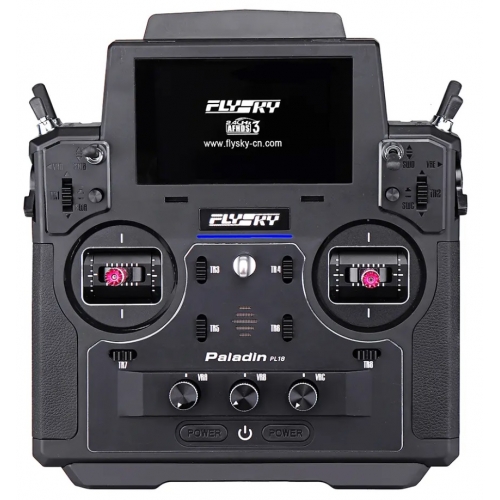

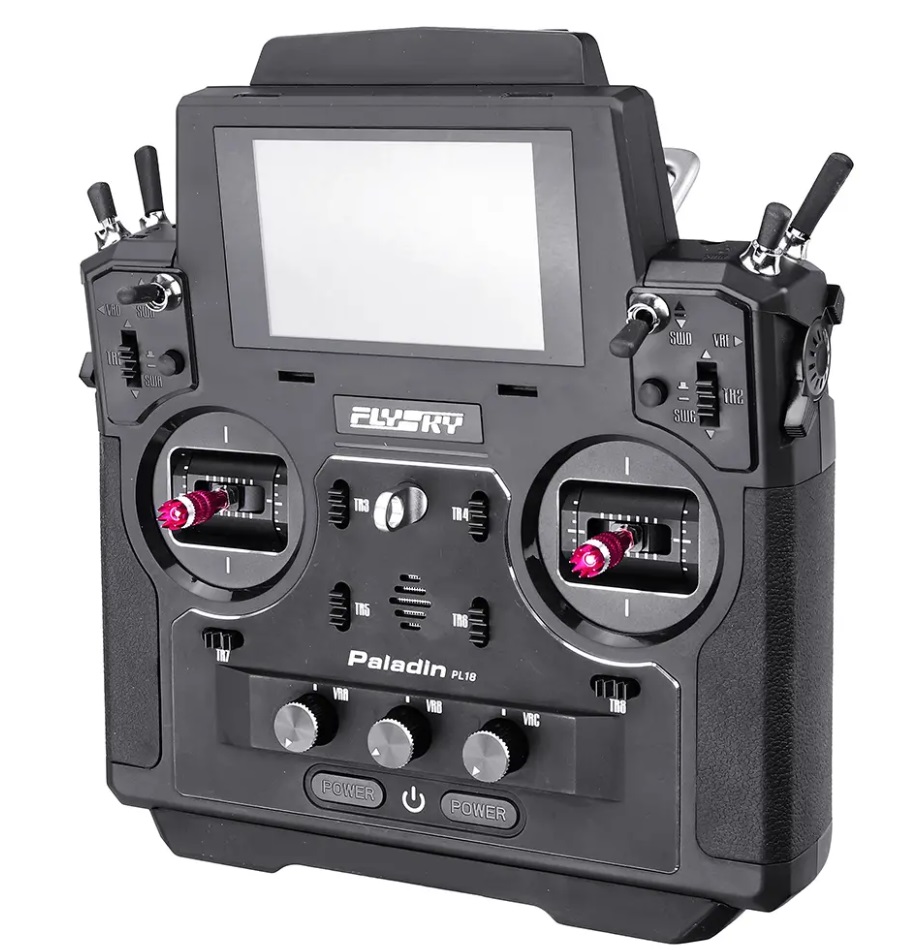

Flysky FS-PL18 2.4G 18CH Paladin Transmitter with FS-FTR10 Receiver HVGA 3.5 Inch TFT Touch Screen

To be designed for RF performance and stability with strong anti-interference capabilities with a focus on competitive use.The casing high quality, metal parts used, a color screen and bearing gimbals. Replaceable high frequency module and support for other RF modules.

Specificaiton:
Brand name: Flysky
Item name: FS-PL18
Channel: 18CH

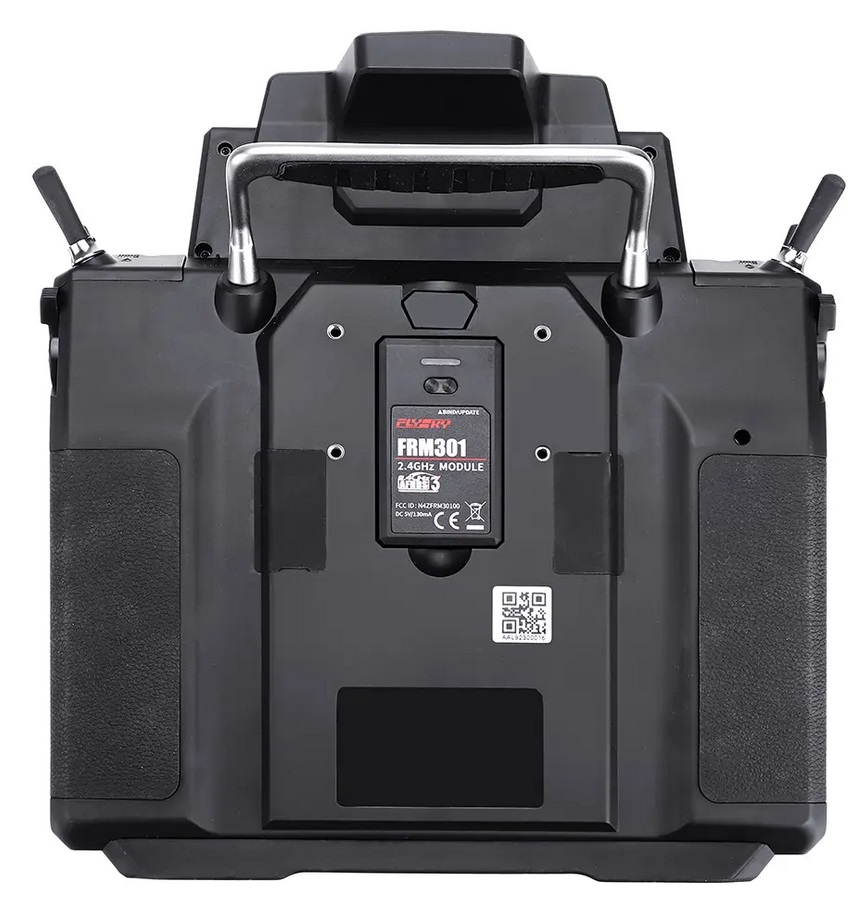

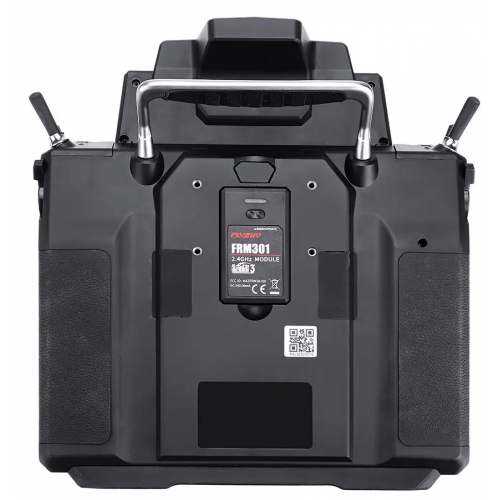

FRM301 high frequency TX Module
Spectrum analyzer
bluetooth function, GPS function, wireless charging base

18 Channels Support
Up to 18 channels of output (depending on the receiver)

Built-in AFHDS 3
Internal AFHDS 3 for 2.4GHz Protocol

3.5"TFT Color Touch Screen
With HVGA 3.5-inch TFT color screen, 320 * 480 dot matrix,LCD white backlight, capacitive touch screen (TBD)

Strong Anti-interference Capabilities
Stability with strong anti-interference capabilities with a focus on competitive use

Micro USB Port
Micro USB Port added for convienince and simulator use.

RF Module Support
Support for other companies RF modules

Free to Switch Types, Handy with 18 Channels.

For the first time fixed-wing, glider, helicopter, FPV, multicopter and construction vehicles are all supported with one transmitter. Switch model types and play with 18 customizable channels.

Smash all boundaries and do things your way with the Paladin PL18.

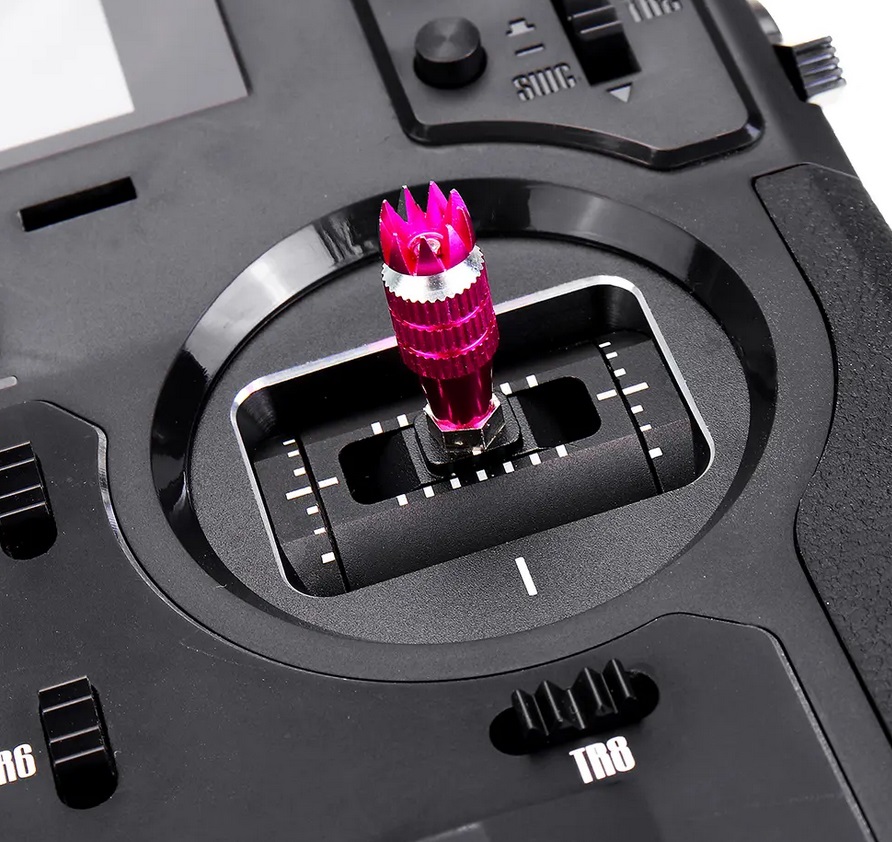

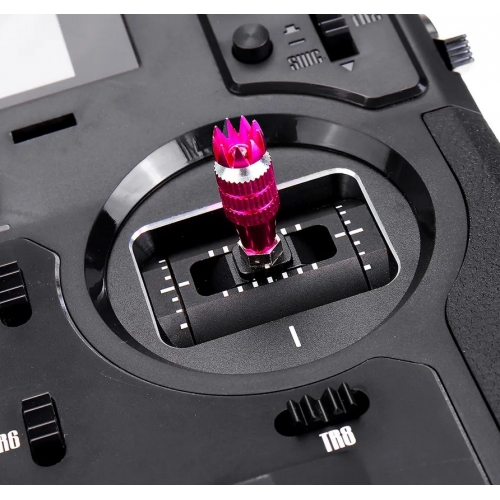

Adjustable high precision HALL gimbal technology!

The high-precision hall gimbals are easy to set up for left- or right-hand throttle, have adjustable spring tensioning, as well as adjustment for dampening and max/min movement angle. Never has a gimbal ever felt so good for so many people.

Third Generation RF Technology，Detachable RF Module,

From Now On, Everything Will Never Be The Same.

AFHDS 3 is the latest generation of RF technology developed by FlySky, especially for the PL18. AFHDS 3 is designed to be an all in one configurable, low latency (5ms), stable protocol for use at longer ranges (up to 3.6km), even in the presence of interference.

The PL18 is designed to be compatible with many different detachable RF modules making the PL18 one of the most flexible FlySky products.

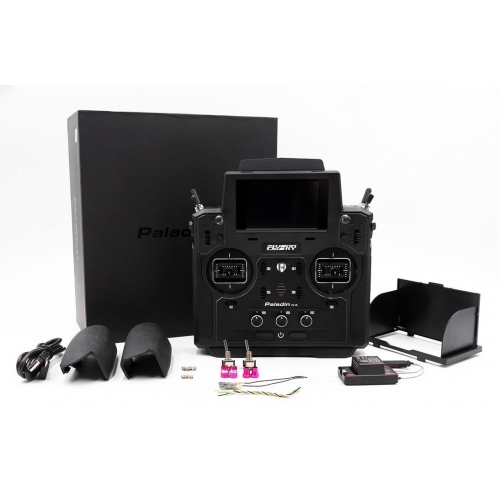

1 x FS-PL18 Transmitter
1 x FS-FTR10 Receiver

Standard Receiver: FR10
Channel: 18CH
Data Output: Micro-USB
Frequency Range: 2.400-2.483 GHz
Transmission Power: no more than 20 dBm
Receiving Sensitivity: <-105dBm
2.4GHz Protocol: AFHDS 3
Modulation Type: GFSK /LORA
Transfer Method: FHSS(Frequency Hopping), DSSS(Spread Spectrum)
Channel Resolution: 4096
Low Voltage Alarm: < 3.7V
Charging Interface: Yes
Antenna Type: Dual Antenna
Battery: 1S 3.7V 4300mAh
Display: HVGA 3.5-inch TFT screen, 320 x 480 dot matrix, LCD white backlight, capacitive touch screen
Online Update: Yes
Range  without interference from the ground distance (both transmitter and receiver 1 meter from the ground): More than 500 meters
Safety Certifications: CE,FCC
