RadioLink PRM-02 OSD Telemetry Module

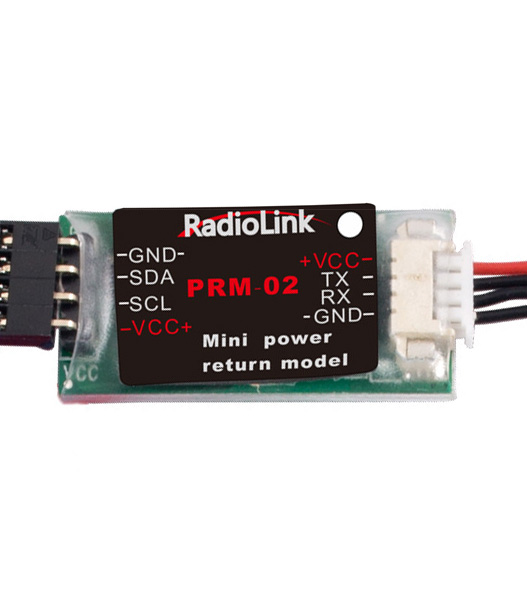

OSD telemetry sensor: PRM-02

OSD Telemetry module transmits the data from the flight controller and shows the data of SPEED, RISE, THRO, VOLT, LATI, LONG, ALT, GPS, RSSI, MODE, YAW, ROLL, PITC, DIST in the display screen of AT9 or AT10.

1.Introduction:
(1). Please upgrade your AT9 firmware to V1.2.6(OSD).(1)AT10 firmware to V1.0.6(OSD).
(2). So far, this OSD telemetry module is compatible with PIX and APM.
(3). OSD telemetry module can work with both R9D and R10D.

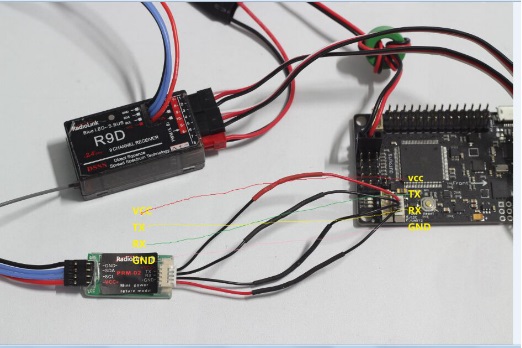

2.Connection
Connect one end of the OSD to R9D or R10D, and the other end to PIX or APM.

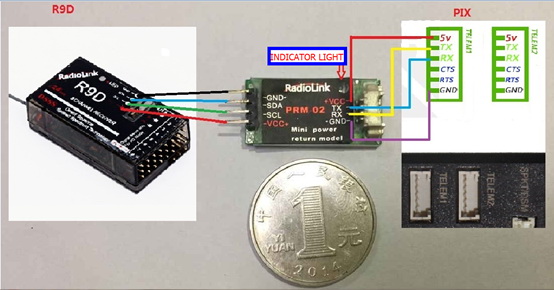

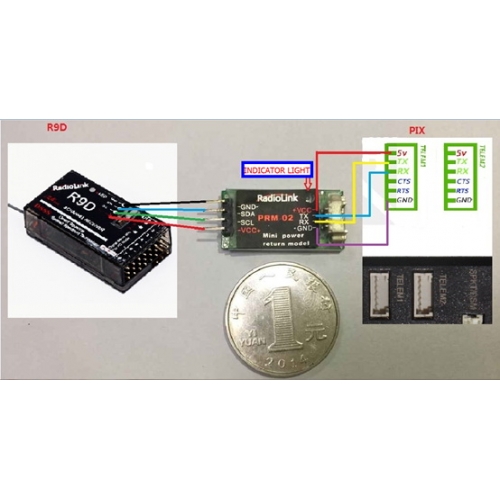

Connect to PIX:

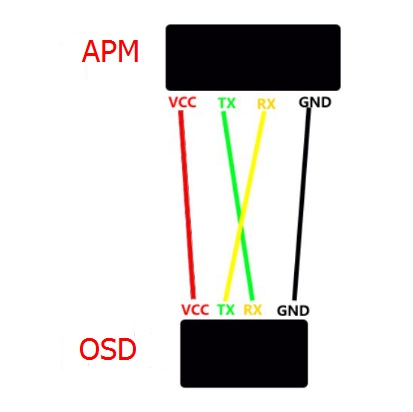

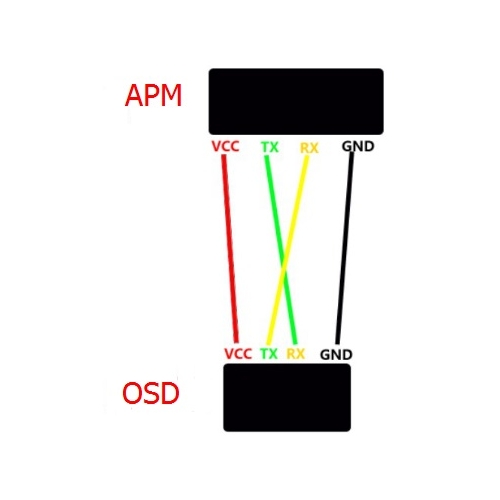

Connect to APM:

Attention :

1.No output if USB connect flight-controller and computer.

2.No VOLT information if use UBEC, have to offer electricity for flight-controller by volt ammeter.

3.Have to short-circuit the MUX-TXO/OSD of APM when connect PRM-02(OSD) to APM.



Technical Parameters



Size: 33*15mm

Weight: 6g (including connector)

RadioLink PRM-02 OSD Telemetry Module PRM-02 in the shop RcHubiQ

alt

Size: 33*15mm

Weight: 6g (including connector)
