Producer code: SUI04
Stockage:
Technology of Hardware and Software Dual Filters, 30ms Extreme Fast Response. 0.4cm Detecting Precision, Accurate Obstacle Avoidance without Delay. Transceiver with 60° Beam Angle and Zero Fade Area.
With the integrated 32-bit processor and a breakthrough of hardware and software dual filters technology adopted, SUI04 ensures the accuracy and realizes the 30ms fast response. This function is helpful for flight operation such as agricultural drones, detecting the height real-time and feedback in time when there is ob-stacle to realize protection for both operator and drone. Compatible with RADIOUNK flight controller PIXHAWK, MINPIX and TURBO PIX and PIXHAWK of open source. Please upgrade the flight controller’s firmware to RADIOUNK Copter V3.5.7 version before using the overall obstacle avoidance function of SUI04.
60° beam angle detects environment and senses obstacle in real-time. Connect SUI04 with flight controller PIXHAWK(of RadioLink and open source)/MINI PIX/TURBO PIX via I2C expansion board to realize obstacle avoidance of 4 horizontal directions, upward side and altitude hołd downward and ensure safer flight.
With 0.4cm detecting accuracy and zero fade area, SUI04 can guickly spot barrier.

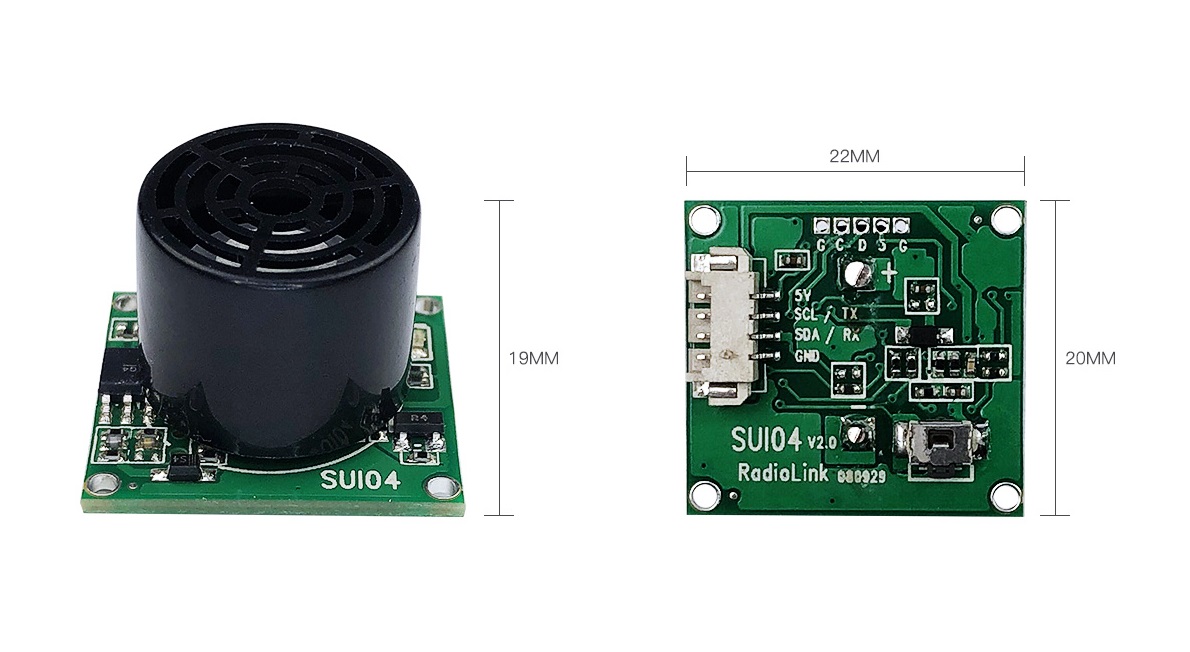

Transceiver with super mini size of 20*22*19mm and light weight of 8g, even RADIOLINK QAV210 racing drone can easily carry.
Brand Name: RadioLink
Model: SUI04

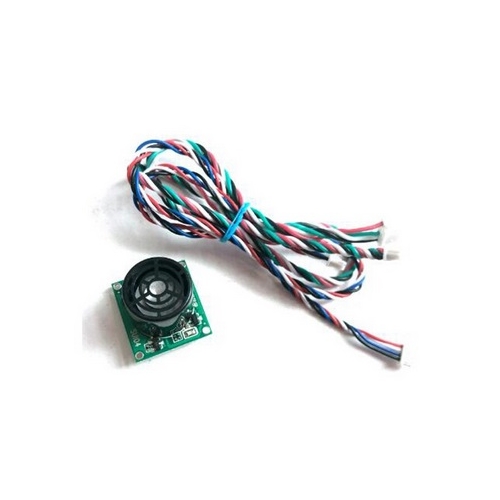

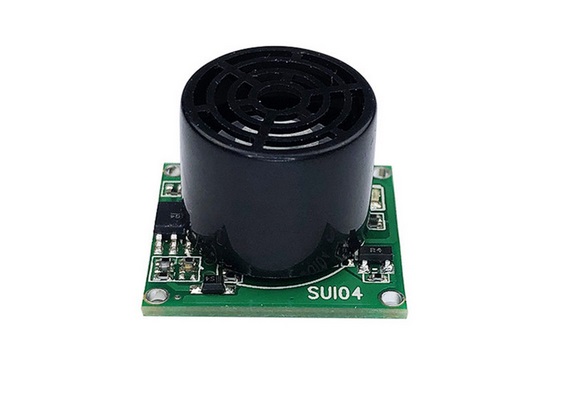

Item Name: Ultrasonic Sensor SUI04 Obstacle Avoidance Module
Size: 20*22*19mm
Weight: 8g (with wires)
lInput voltage: 4.5~5.5V(do not support HV)
lCurrent: 18mA@5V
lPower: 90mA
lOperating temperature: -20°C~80°C
lDetection distance: 40cm~450cm
lDetecting precision: 0.1cm
lAcoustic emission frequency: 40±1.0KHz
lBeam angle: 60°(transmitting receiving hybrid)
lFade area: 0 (it will show 40cm)
lOutput protocol: I2C
lDuty Cycle: 30ms
