Chargery Power C10325 1500W 24S - LIPO, LI-ION, LIFE, LiTo, NIMH / NICD

Availability: Not available

Shipping time: 24 hours

The cost of shipping: from 1.95 Euro Available delivery forms for viewing the product:Curier Service - 3.66 Euro
Air Mail - 3.90 Euro
Poczta Polska list polecony - 1.95 Euro
Surface mail - 3.41 Euro
InPost Paczkomaty24 - 2.44 Euro
Personal Acceptance - 0.00 Euro

Producer code: C10325

Stockage:

Price: 314.63 Euro

Currently not available

add to wish list

  • Product description
  • Specyfications:
  • Product reviews (0)

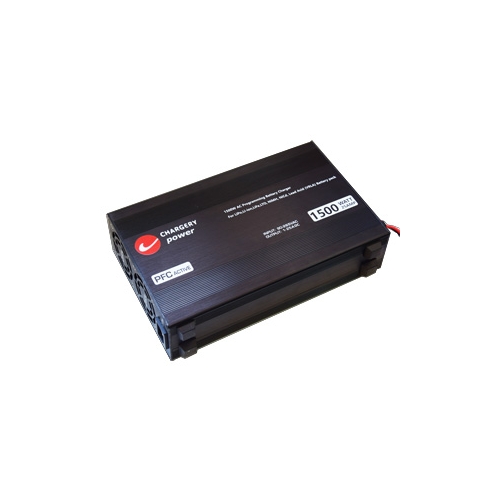

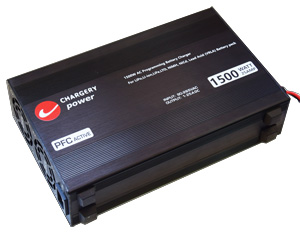

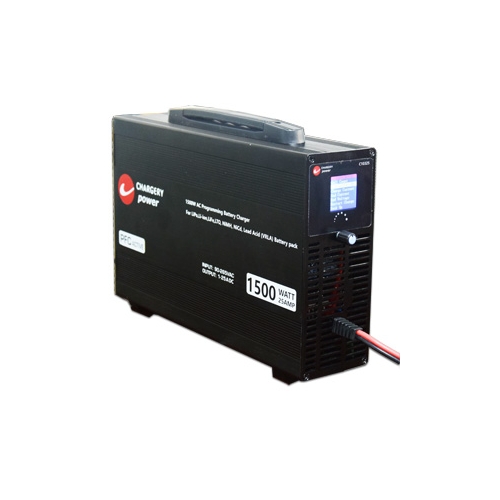

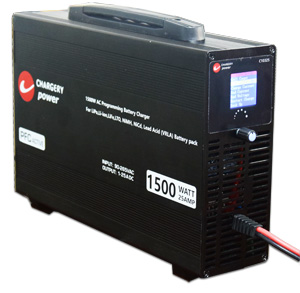

Chargery Power C10325 1500W 24S - LIPO, LI-ION, LIFE, LiTo, NIMH / NICD

alt
C10325 is a high voltage battery charger, programmed battery type, cell count, charge current, charge terminal voltage for LI-ION, LIPO, LIFE, LiTo, NIMH/NICD, and Lead Acid battery.
              Optimization of system design make sure the 1500W charger consume less than 1W at idel mode. TFT color LCD is easy to display clearly voltage, current, capacity charged and internal temperature.
             One button design easy to operate and control the charge process.
             Although C10325  charge any battery at 25A 1500W, the efficiency is still up to 94% at a smaller size.
alt

Special  Features:

Over current protection
Over voltage protection
Charge power protection
Over temperature protection
Anti spark on battery connection even 100V battery connect to charger
Reverse polarity protection of battery connection
Prevent any cell from over charging, adjust charge current automatically fit with Chargey BMS

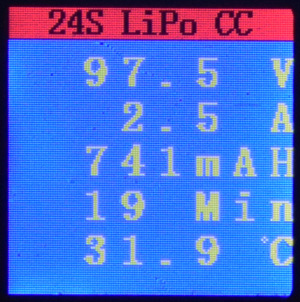

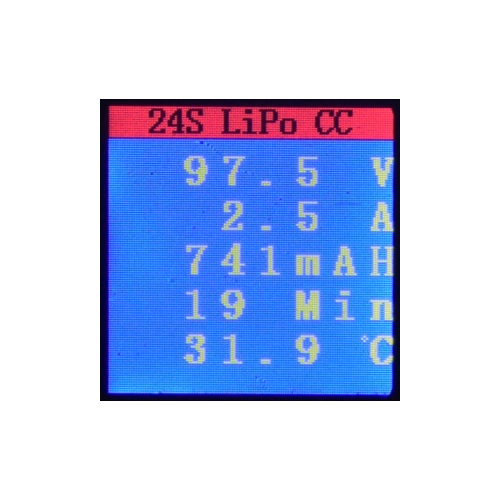

LCD display battery voltage, charge current, charging time, capacity charged
Charge terminal voltage, terminal current and cell count is programed.



C10325 can work on Auto mode and normal mode, on Auto mode, Connec to AC power or battery pack, the charger will start to charge automatically, need not any setup and other operation. to set up Auto mode, please down load the video for details.

alt

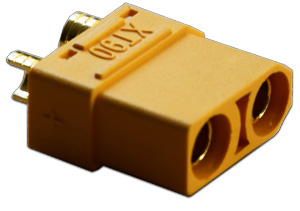

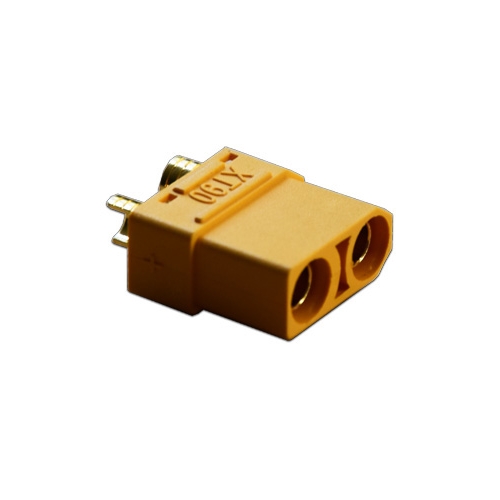

Set Box:
alt

Specifications:
Input voltage:  AC 90-265V
 Input RMS Current:  18A maximal
Charge current:  1-25A, 1500W max.
Battery Type:

4S-24SLiPoly,  Li-ion,
5S-28SLiFePO4,
7S-36S LiTo,
10S-68S NiMh/NiCd,
6S-41S Pb acid(VRLA)

Mechanical Characteristics

Size:275*170*68 (L×W×H, mm)
Weight: 2.5Kg



Recommended in a set with: BMS24T (not included!)

alt
Specifications:
Input voltage:  AC 90-265V
Input RMS Current:  18A maximal
Charge current:  1-25A, 1500W max.
Battery Type:

4S-24SLiPoly,  Li-ion,
5S-28SLiFePO4,
7S-36S LiTo,
10S-68S NiMh/NiCd,
6S-41S Pb acid(VRLA)

Mechanical Characteristics

Size:275*170*68 (L×W×H, mm)
Weight: 2.5Kg
