Producer code: BMS24T

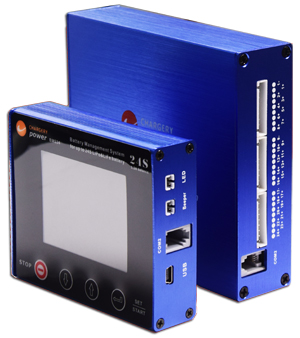

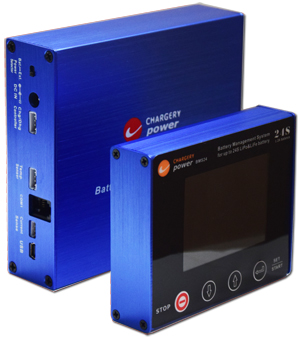

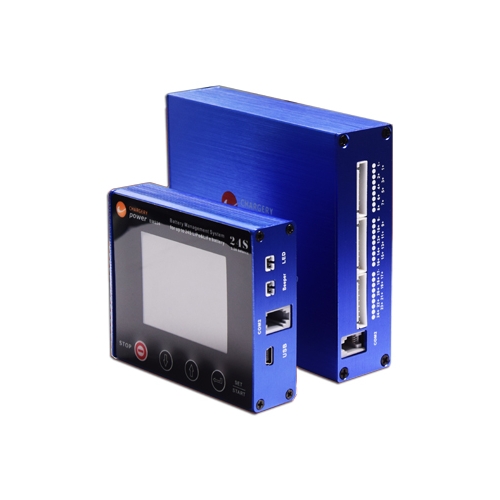

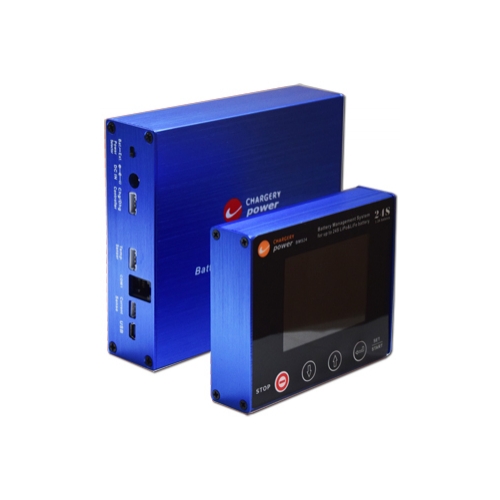

Chargery BMS24T is designed special for LiPo,LiFe and LiTo battery pack applied to
storage energy system and Electrical Vehicle including E-Motorcycle, E-Scooter and so on.
The unit can measure or detect the battery voltage, cell voltage, charge & discharge current,
battery temperature, and battery SOC (State of Charge) , displayed with TFT color LCD.
BMS24T Special Features
1. The BMS24T uses advanced ADC measurement technology, high accuracy, high voltage and high current
detection circuit. The maximum voltage measurements tolerance is within 5mV at up to 24S LiPo battery
2. Support regenerative braking, during braking operation can charge the batter pack and the discharge power
(Wh) will decrease to response to the braking power.
3. Peak Charge/discharge current up to 600A. Bigger current can be customized.
4. 1.2A per cell balance current is very useful for large capacity battery pack, the feature can resume all cell
voltage balance status at the shortest time. Over temperature protection make sure the system safety
5. BMS24T calculate and display the charge and discharge power (Wh), generally the battery rated power is
rated voltage multiply rated battery capacity.
6. TFT LCD screen provides rich information including current, voltage, power, capacity, battery status, SOC
and temperature and so on.
7. BMS24T features a maximal safety protection, within the range parameters can be setup, BMS24T will alarm
and cutoff charge or discharge according to users` setup, out of range of parameters, and trigged absolute
maximum ratings BMS24T will force to cutoff charge or discharge to prevent the battery from fire.
8. Minimize the power consumption by draw current from all cells or external power supply.
9. Dual power design, the unit can be powered by all cells or external power supply.
10. Detect cell count at any time, and compare with the count detected when switch on first time. If it is not
uniformity, the device will alarm and cutoff charge or discharge according to users` setup, the feature can
prevent any cell connection from loosing.
11. Sound alarm and LED alarm will be triggered when any warning events happened, and then wait several
seconds cut off or Don't cut off charge or discharge. The delay time can be programmed.
12. Charge relay and discharge relay are controlled independently.
13. Two temperature sensors monitor battery temperature on different position.
14. Supports upgrading the firmware program by USB port.
15. BMS24T provide users the maximal flexibility, key parameters can be programmed.
16. BMS24T display battery SOC or called battery gauge similar with car dashboard. Cell count, battery pack
voltage and battery gauge (%) is displayed simultaneously.
17. In case that the battery pack need not be charged and discharged, Press STOP button enter into sleep mode
to save energy consumption, at this mode, Charge and Discharge is forbidden, and LCD back light is off.
Press any key to resume normal work mode.
18. LCD back light ON time can be programmed to save energy, when it is OFF, press any key to resume "ON".
1. Cell count error protection
2. Over charge protection
3. Under voltage protection
4. Over current protection when charge or discharge
5. Over temperature protection
6. Over differential cell voltage protection
7. Over differential battery temperature protection
8. Under SOC protection
1. Battery range: 2S-24S LiPo & LiFe battery pack
2. Accurate scope of the cell voltage: -8mV/+8mV
3. Cell Voltage display range: 0.10~4.99V
4. The voltage of external power:15-60V
5. Balance current:1.2A per cell
6. Temperature display range:-20°C~150°C,
7. SOC indicator:
RED area @ 0~15% of SOC
YELLOW area @ 16~35% of SOC
GREEN area @ 36~100% of SOC
8. Main module Size: 128⊙114⊙33 (L⊙W⊙T, mm) or 5.1⊙4.5⊙1.3 (L⊙W⊙T, inch)
9. Display module size:96⊙80⊙24 (L⊙W⊙T, mm) or 3.8⊙3.2⊙0.95 (L⊙W⊙T, inch)
10. Warning LED: 11000mCd, @ 2.0V, 20mA
11. Warning beeper: 85dB @ 12V, 25mA
12. Package: AL alloy case
Recommended in the set with: Charger Power Charger C10325
